Description

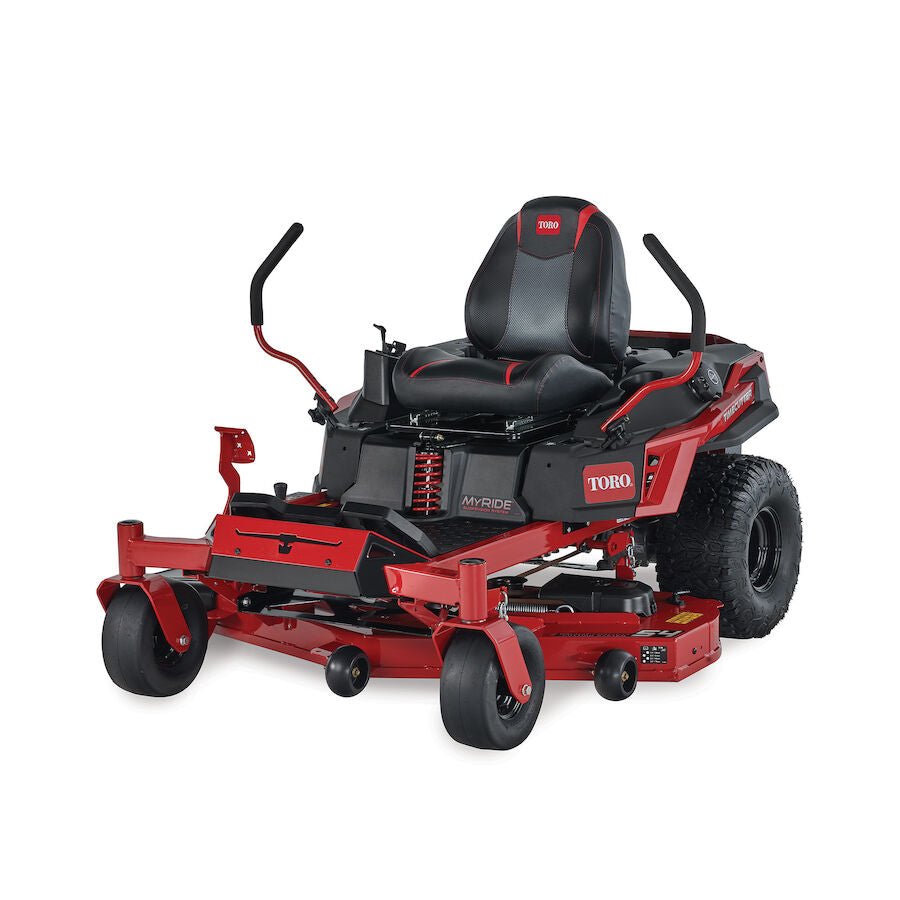

Toro TimeCutter Max 77503 — 23 hp Kawasaki, 54 in. Fabricated Deck with MyRIDE®
The patented MyRIDE® suspension sits isolated from the frame, which saves your back and lets you mow faster over rough ground. Over 100 years of pro DNA runs through the rest of it: a heavy duty steel IronForged® deck that doesn’t flinch, and a four-point deck hanging system that stays solid underfoot as you get on and off.
Beefy hybrid-tread rear tires give traction without tearing up turf, an automotive-style fuel fill keeps topping off the 5 gallon tank clean, spray blocking fenders keep tire spray off the engine and off you, and the integrated drain hose makes oil changes effortless.
Key Features
- Patented MyRIDE® suspension — isolated from the frame to save your back and accelerate the mow.
- IronForged® deck — heavy duty steel across a 54 in. cutting width.
- Four-point deck hanging system — steady underfoot when mounting and dismounting.
- Hybrid-tread rear tires — maximum traction without turf damage.
- Automotive-style fuel fill — cleaner refills of the 5 gallon tank.
- Spray blocking fenders — keep spray off the engine and the operator.
- Integrated drain hose — mess-free oil changes.
- Fully tubular steel frame — rock solid and ready to ride.
- Drop pin height of cut — the pro standard, quick to adjust.
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional (Not Included) |
| Bagger Capacity | 79503 4.9 bushels (Not Included) |
| Blade Tip Speed | 17,700 ft/min / 5,395 m/min |
| Box Dimensions | 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® |
| Suspension | System |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in / 137 cm |
| Discharge Chute | Side |
| Drive System | Hydrostatic |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional (Not Included) |
| Hydraulic Drive | Standard |
| Lighting | Optional (Not Included) |
| Number of Blades | 3 |
| Product Type | TimeCutter Max MyRide Product Use Residential |
| Recommended Oil Type | 10W-30 Roll-Over Protection (ROPS) Optional (Not Included) |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 684 lbs / 310.3 kg . |
Additional information​
| title | Default Title |
|---|
Toro Timecutter Max 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower w/ MYRIDE #77503
$1,599.00
A 54 in. TimeCutter MAX with MyRIDE® suspension isolated from the frame — comfort that lets you mow faster.
- 23 hp Kawasaki, up to 7 mph
- 54 in. IronForged 10-gauge deck
- 5 gallon tank, fully tubular steel frame
We provide a comprehensive 2-year warranty covering manufacturing defects and material failures.
Every blade undergoes rigorous quality control to ensure long-lasting performance and structural integrity.
Worldwide tracked delivery. Dispatched within 24 hours of order confirmation.
Not satisfied? Return any item within 90 days for a full refund, no questions asked.
