Description

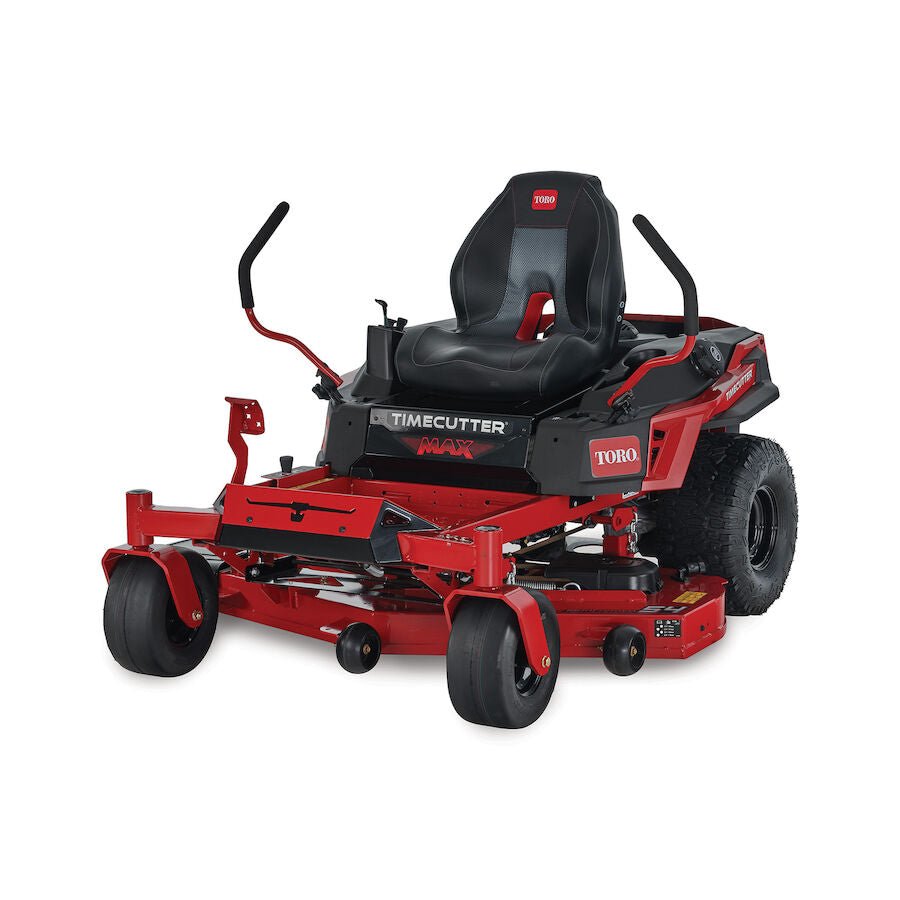

Toro TimeCutter MAX 77504 — 23 hp Kawasaki, 54 in. Fabricated Deck
Over 100 years of pro DNA runs through every mower Toro builds. The heavy duty steel IronForged® deck handles whatever you throw at it, the gaming-style seat gives you support where you need it, and the four-point deck hanging system stays put underfoot when you get on or off.
Beefy hybrid-tread rear tires deliver maximum traction without tearing up turf, an automotive-style fuel fill keeps topping off the 5 gallon tank clean, and spray blocking fenders keep tire spray off the engine and off you. The integrated drain hose makes oil changes effortless.
Key Features
- IronForged® deck — heavy duty 10-gauge steel across a 54 in. cutting width.
- Fully tubular steel frame — ultra-strong and rock solid.
- Four-point deck hanging system — steady underfoot when mounting and dismounting.
- 19 in. gaming-style seat — big support where it counts.
- Hybrid-tread rear tires — traction without turf damage.
- Spray blocking fenders — keep spray off the engine and the operator.
- Automotive-style fuel fill — cleaner refills of the 5 gallon tank.
- Integrated drain hose — mess-free oil changes.
- Drop pin height of cut — pro-style, quick to adjust.
- Extra-large drink holder — built in.
Optional Accessories (Not Included)
- Recycler Mulch Kit (139-3235)
- TimeCutter Non-Powered Bagger (79501)
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 17,700 ft/min / 5,395 m/min |
| Box Dimensions | 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in / 137 cm |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max Product Use Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 653 lbs / 296.2 kg |
Disclaimer *23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower. †See retailer for warranty details. ‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features. Accessory List (Not Included) Model/Part # Description 139-3235 Recycler Mulch Kit 79501 TIMECUTTER Non-Powered Bagger
Additional information​
| title | Default Title |
|---|
Toro Timecutter MAX 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower #77504
$2,100.00
The 54 in. TimeCutter MAX — same tubular steel build and IronForged deck, wider cut.
- 23 hp Kawasaki FR691V 726cc, up to 7 mph
- 54 in. 10-gauge deck with a 1–5 in. cut height
- 5 gallon tank and 19 in. gaming-style seat
