Description

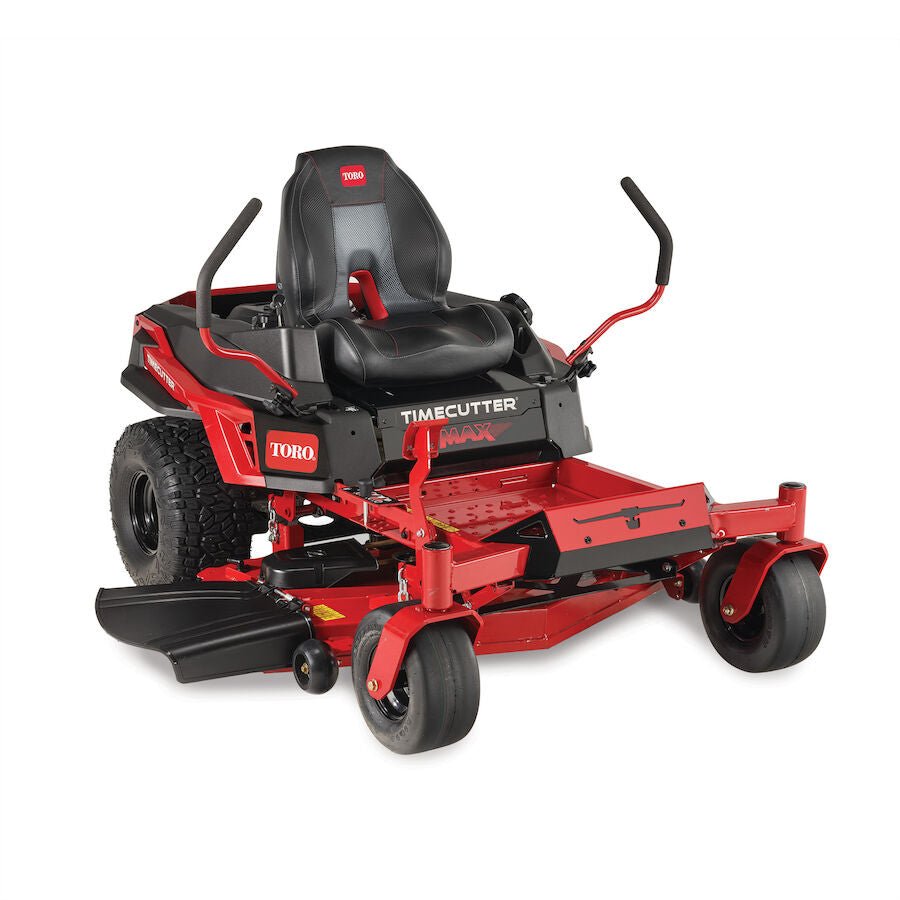

Toro TimeCutter MAX 77501 — 23 hp Kawasaki, 50 in. Fabricated Deck
Over 100 years of pro DNA runs through every mower Toro builds, and this one wears it openly. The heavy duty steel IronForged® deck doesn’t flinch at whatever you throw at it, the gaming-style seat puts support exactly where you need it, and the four-point deck hanging system stays solid underfoot as you climb on and off.
Beefy hybrid-tread rear tires give maximum traction without tearing up turf, spray blocking fenders keep tire spray off the engine and off you, and an automotive-style fuel fill makes topping off the 5 gallon tank far less messy. The integrated drain hose takes the mess out of oil changes.
Key Features
- IronForged® deck — heavy duty 10-gauge steel built to shrug off abuse.
- Fully tubular steel frame — ultra-strong and rock solid underneath everything else.
- Four-point deck hanging system — stable underfoot when mounting and dismounting.
- 19 in. gaming-style seat — big support where it counts.
- Hybrid-tread rear tires — maximum traction without tearing up your turf.
- Spray blocking fenders — keep tire spray off the engine and the operator.
- Automotive-style fuel fill — less mess topping off the 5 gallon tank.
- Integrated drain hose — effortless, clean oil changes.
- Drop pin height of cut — the same system the pros use, for quick adjustment.
- Extra-large drink holder — keeps your beverage handy.
Optional Accessories (Not Included)
- Recycler Mulch Kit (139-3240)
- TimeCutter Non-Powered Bagger (79501)
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 17,600 ft/min / 5,364 m/min |
| Box Dimensions | 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 50 in / 127 cm |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max Product Use Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 644 lbs / 292.1 kg |
Disclaimer *23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower. †See retailer for complete warranty details. ‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features. Accessory List (Not Included) Model/Part # Description 139-3240 Recycler Mulch Kit 79501 TIMECUTTER Non-Powered Bagger
Additional information​
| title | Default Title |
|---|
Toro Timecutter MAX 23hp Kawasaki Engine 50″ FAB Deck Z-Turn Mower #77501
$1,200.00
A 50 in. TimeCutter MAX on a fully tubular steel frame, with a 10-gauge IronForged deck and a 5 gallon tank.
- 23 hp Kawasaki FR691V 726cc, up to 7 mph
- Four-point deck hanging system, three blades
- 19 in. gaming-style seat and hybrid-tread rear tires
We provide a comprehensive 2-year warranty covering manufacturing defects and material failures.
Every blade undergoes rigorous quality control to ensure long-lasting performance and structural integrity.
Worldwide tracked delivery. Dispatched within 24 hours of order confirmation.
Not satisfied? Return any item within 90 days for a full refund, no questions asked.
Full technical details and material specifications are listed below.
