Description

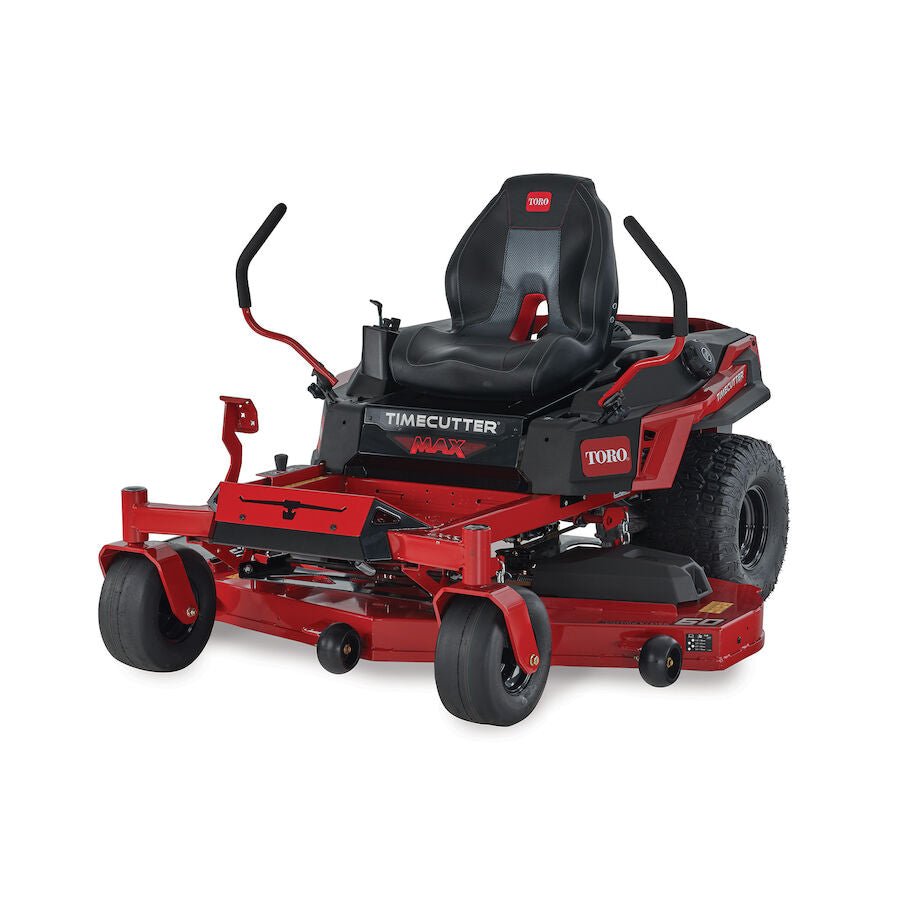

Toro TimeCutter MAX 77601 — 23 hp Kawasaki, 60 in. Fabricated Deck
Over 100 years of pro DNA runs through every mower Toro builds, and the 60 in. MAX puts it to work on the biggest residential lawns. The heavy duty steel IronForged® deck doesn’t flinch, the gaming-style seat gives support where you need it, and the four-point deck hanging system stays put underfoot when you get on or off.
Beefy hybrid-tread rear tires deliver traction without tearing up turf, an automotive-style fuel fill keeps topping off the 5 gallon tank clean, and the integrated drain hose makes oil changes effortless.
Key Features
- IronForged® deck — heavy duty 10-gauge steel across a 60 in. cutting width.
- Fully tubular steel frame — ultra-strong and rock solid.
- Four-point deck hanging system — steady underfoot when mounting and dismounting.
- Gaming-style seat — big support where it counts.
- Hybrid-tread rear tires — maximum traction without turf damage.
- Spray blocking fenders — keep tire spray off the engine and the operator.
- Automotive-style fuel fill — cleaner refills of the 5 gallon tank.
- Integrated drain hose — mess-free oil changes.
- Extra-large drink holder — built in.
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Box Dimensions | 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Side |
| Drive System | Hydrostatic |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Standard |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max Product Use Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission | Dual Hydrostatic HG-ZT2800 |
| Washout Port | Standard |
| Weight | 668 lbs / 303 kg Model/Part # Description 139-3290 Recycler |
| Mulch Kit | 79413 TIMECUTTER Non-Powered Bagger |
Additional information​
| title | Default Title |
|---|
Toro Timecutter 77601 MAX 23hp Kawasaki Engine 60″ FAB Deck Z-Turn Mower
$2,130.00
A 60 in. TimeCutter MAX — the widest cut in the MAX line, on a fully tubular steel frame.
- 23 hp Kawasaki, up to 7 mph
- 60 in. IronForged 10-gauge deck, three blades
- 5 gallon tank and gaming-style seat
We provide a comprehensive 2-year warranty covering manufacturing defects and material failures.
Every blade undergoes rigorous quality control to ensure long-lasting performance and structural integrity.
Worldwide tracked delivery. Dispatched within 24 hours of order confirmation.
Not satisfied? Return any item within 90 days for a full refund, no questions asked.
Full technical details and material specifications are listed below.
