Description

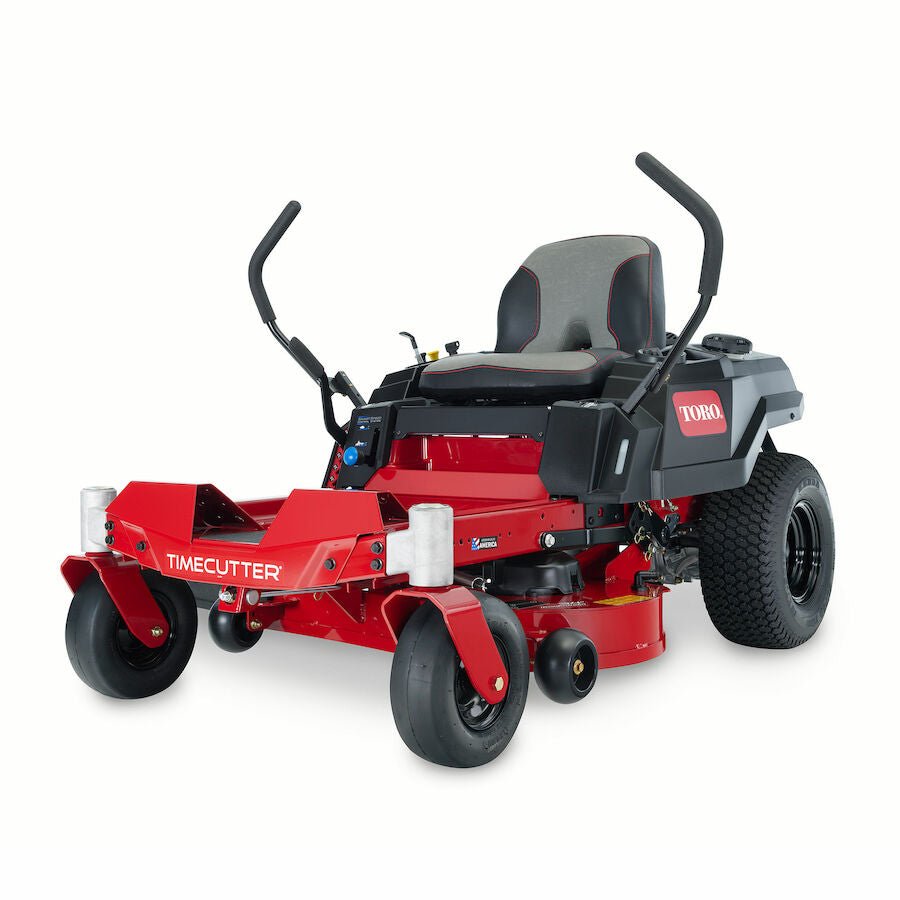

Toro TimeCutter 77301 — 22 hp Briggs & Stratton 724cc, 34 in. Fabricated Deck
The zero-turn for tackling big lawn jobs that also has to fit through a narrow gate and live in a crowded garage. Small but mighty: a 22 HP V-twin Briggs & Stratton engine and a 34 in. IronForged® deck let you build a beautiful lawn and still have time to enjoy it.
Toro backs it with a 3-year, 300-hour commercial engine limited warranty, and as a Toro owner you have access to more than 3,000 servicing dealers across the U.S. and Canada.
Key Features
- Built like a bull — IronForged® high strength grade 50, 10-gauge steel deck with a bull nose reinforced leading edge.
- Compact design — fits small spaces and stores easily.
- Speed control — take control of mowing speed without sacrificing blade tip speed.
- Step-through front end — easy on and off for clearing debris.
- Storage cubby — a safe under-seat space for important items.
- Handcrafted seat — padding and back support for longer sessions.
- Pro DNA — the same commercial technology the pros depend on.
Specifications
| Air Filter | Standard Briggs & Stratton Air Cleaner |
|---|---|
| Anti Scalp Wheels | 2 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Design | 0.164 in. / 0.417 cm Steel with |
| Blade | Stiffner |
| Blade Tip Speed | 18,179 ft/min / 5,541 m/min |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 11 in. x 4 in. – 5 in. Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Cutting Width | 34 in / 86 cm |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 18 in. x 6 in. – 8 in. (45.7 cm x 15.2 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 22 hp Briggs and Stratton EXI 724cc |
| Engine Brand | Briggs and Stratton |
| Engine Displacement (cc) | 724 cc |
| Engine Horsepower | 22.0 hp |
| Engine Power (kW) | 16.4 kW |
| Foot Operated Height of Cut | Optional |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 – 4.5 in. / 3.8 – 11.4 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional Hydraulic Dampeners Yes, Non-Cavitating |
| Hydraulic Drive | Standard |
| Number of Blades | 2 |
| Product Type | TimeCutter Product Use Residential |
| Recommended Oil Type | 10W-30 Roll-Over Protection (ROPS) Optional |
| Seat | 16″ Handcrafted |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2100 |
| Washout Port | Standard Model/Part # Description 140-3536 Recycler |
| Mulch Kit | 79417 TIMECUTTER Non-Powered Bagger |
Additional information​
| title | Default Title |
|---|
Toro Timecutter 22hp 724cc Briggs & Stratton Engine 34″ FAB Deck Z-Turn Mower #77301
