Description

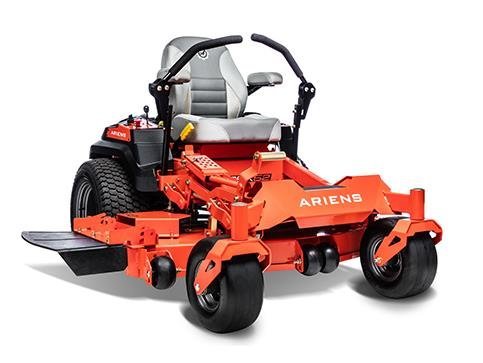

The Ariens Apex 60 KW brings commercial-grade features to the top of the residential zero-turn range. Its most powerful engine — a 24 hp Kawasaki FR V-Twin — drives a 60-inch fabricated deck, with progressive steering and an intuitive deck lift for tighter control.
Delivery Notice
This machine is too large to be lowered to the ground with a lift-gate. You must be able to unload it from a semi using your own equipment, at a loading dock, or by arranging terminal pick-up. Please call us before purchasing if you are unsure of this process.
Engine and Drive
- 24 hp / 726 cc Kawasaki FR V-Twin, the most powerful engine in the range.
- Hydro-Gear ZT-3100 transaxles for smooth hydrostatic drive.
- 8 mph forward, 4 mph reverse.
- 5-gallon (18.9 L) fuel capacity.
Cutting Deck
- 60-inch fabricated deck, 5½ in. deep in 10-gauge steel.
- Three spindles in aluminium with steel shafts, reaching 8,000 fpm blade tip speed.
- 15 cutting positions from 1.5 to 5 inches.
- Electric Ogura® engagement with a foot-operated deck lift.
Comfort and Controls
- Plush high-back comfort seat with seat springs, lever adjust and armrests.
- Fully tubular steel frame for unprecedented strength.
- Hour meter fitted as standard.
Specifications
| Model number | 991163 |
|---|---|
| Engine | Kawasaki FR V-Twin, 24 hp, 726 cc |
| Drive system | Hydro-Gear ZT-3100 transaxles |
| Cutting width | 60 in. |
| Cutting height | 1.5–5 in., 15 positions |
| Deck | 10-gauge fabricated, 3 spindles |
| Blade tip speed | 8,000 fpm |
| Ground speed | 8 mph forward / 4 mph reverse |
| Fuel capacity | 5 gallons (18.9 L) |
| Front wheels | 13 x 6.5 in. – 6 in. |
| Rear wheels | 22 x 12 in. – 12 in. |
| Warranty | 3-year limited consumer / 1-year limited commercial |
Additional information​
| title | Default Title |
|---|
Ariens Apex 60 KW Zero Turn Lawn Mower
$1,299.00
Top-of-the-line residential zero-turn with a 60-inch 10-gauge deck and 24 hp Kawasaki FR V-Twin, 8,000 fpm blade tip speed and commercial-grade build. Freight restrictions apply.
